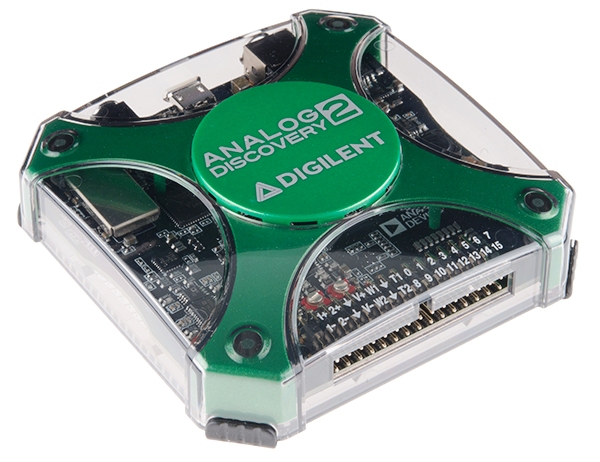

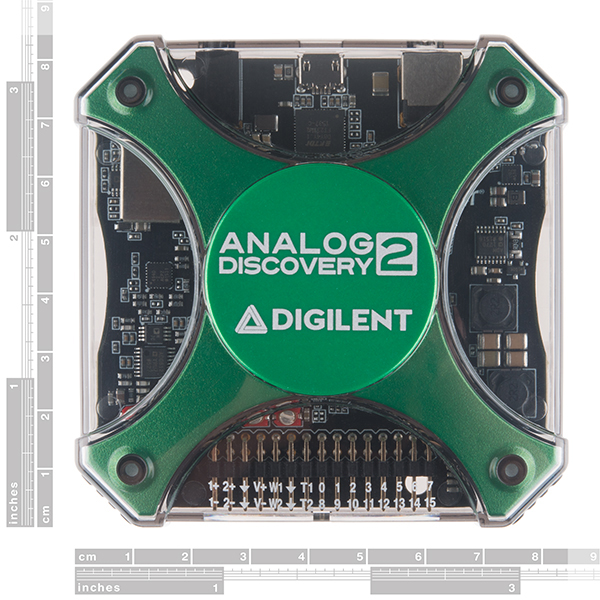

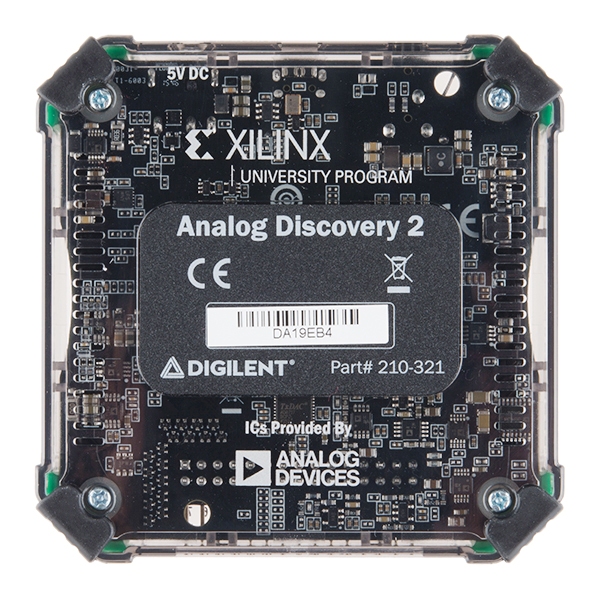

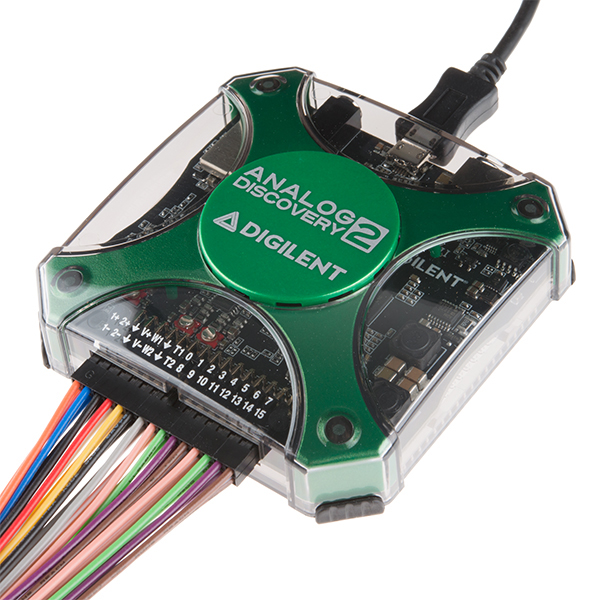

Osciloscopio e instrumento multifunción USB, permite medir, visualizar, generar, grabar y controlar circuitos mixed-signal de todos los tipos. Proporciona la posibilidad de trabajar con circuitos análogos y digitales en cualquier lugar, adentro o fuera del laboratorio.

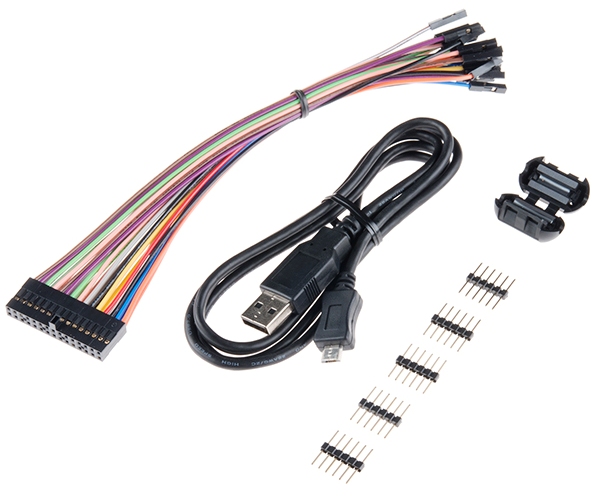

Incluye:

• Analog Discovery 2
• Carcasa
• Cable de programación USB A a micro B
• 2x15 flywire signal cable assembly
• 5-pack of 6-pin male headers
• Ferrite cable snap-on

Características:

• Two-channel USB digital oscilloscope (1MΩ, ±25V, differential, 14-bit, 100Msample/sec, 30MHz+ bandwidth - with the * Analog Discovery BNC Adapter Board)
• Two-channel arbitrary function generator (±5V, 14-bit, 100Msample/sec, 20MHz+ bandwidth - with the Analog Discovery BNC Adapter Board)
• Stereo audio amplifier to drive external headphones or speakers with replicated AWG signals
• 16-channel digital logic analyzer (3.3V CMOS, 100Msample/sec)
• 16-channel pattern generator (3.3V CMOS, 100Msample/sec)
• 16-channel virtual digital I/O including buttons, switches, and LEDs – perfect for logic training applications
• Two input/output digital trigger signals for linking multiple instruments (3.3V CMOS)
• Single channel voltmeter (AC, DC, ±25V)
• Network analyzer – Bode, Nyquist, Nichols transfer diagrams of a circuit. Range: 1Hz to 10MHz
• Spectrum Analyzer – power spectrum and spectral measurements (noise floor, SFDR, SNR, THD, etc.)
• Digital Bus Analyzers (SPI, I²C, UART, Parallel)
• Two programmable power supplies (0…+5V , 0…-5V). The maximum available output current and power depend on the Analog Discovery 2 powering choice:
• 250mW max for each supply or 500mW total when powered through USB
• 700mA max or 2.1W max for each supply when using an external wall power supply

Manual de usuario: Click Aquí.

Enlace de interés:

Palabras claves: osciloscopio, analizador lógico, generador funciones
