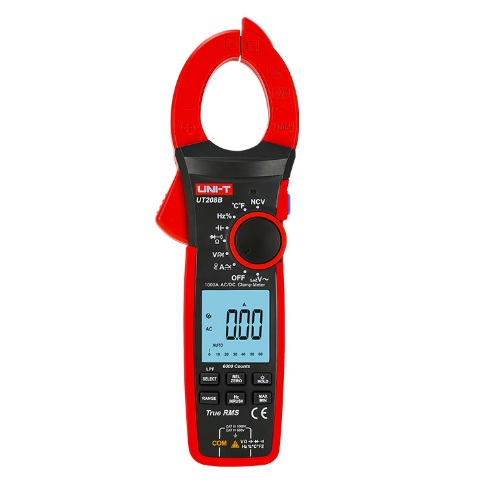

Pinza voltiamperímetrica auto rango digital 1000V AC/DC TRUE RMS UNIT
[UT208B] Pinza voltiamperímetrica auto rango digital 1000V AC/DC TRUE RMS UNIT
Pinza voltiamperimétrica, mide voltaje AC/ DC, corriente AC/ DC, resistencia, temperatura, capacitanica, frecuencia, ciclo de dureza, auto rango y continuidad.
SPECIFICATIONS
| Specifications | Range | Best Accuracy |
| Model | UT208B | |
| AC Current(A) | 1000A | ±(2%+5) |
| DC Current(A) | 1000A | ±(2%+5) |
| AC Voltage(V) | 1000V | ±(1.2%+3) |
| DC Voltage(V) | 1000V | ±(0.5%+5) |
| Resistance(Ω) | 60MΩ | ±(1%+2) |
| Low voltage frequency(Hz) | 10Hz/1MHz | ±(0.1%+3) |
| Capacitance(F) | 60mF | ±(4%+5) |
| Temperature(°C) |
-40°C~1000°C -40°F~1832°F |
±(1%+2) ±(1%+4) |
| Features | ||
| Display Count | 6000 | |
| Jaw opening | 42mm | |
| Auto Range | √ | |
| LCD Backlight | √ | |
| Zero mode | √ | |
| Data Hold | √ | |
| Duty Cycle | 10%~90%Ω | √ |
| LoZ ACV | 1000V ±(2%+5) | √ |
| Low Battery Indication | √ | |
| Auto Power off | √ | |
| Power | 1.5VBatteries (RO3) x 3 | |
| LCD Size | 43mmx45mm | |
| Product Size | 272mmx81mmx43.5mm | |
| Fabricante | UNI-T |
| Frecuencia | Si |
| Diodo | Si |
| RPM | No |
| Duty | Si |
| Continuidad | Si |
| NCV | Si |
| Interfaz Bluetooth | No |
| Interfaz USB | No |
| Tipo de equipo | Portatil |
| Voltaje AC | Si |
| Voltaje DC | Si |
| Corriente AC | Si |
| Corriente DC | Si |
| Resistividad | Si |
| Capacitancia | Si |
| Temperatura | Si |
| Selección de rango | Automático |
