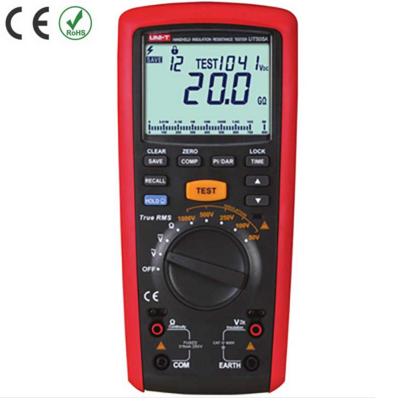

Medidor de Resistencias de aislamiento, para voltajes AC y DC.
SPECIFICATIONS
| Specification | Range | Accuracy | |
| Insulation Resistance(Ω) | Output Voltage | 50V/100V/250V/500V/1000V | 0%~10% |
| 50V | 0.01MΩ~50.0MΩ | ±(3%+5) | |
| 100V | 0.01MΩ~100.0MΩ | ±(3%+5) | |
| 250V | 0.01MΩ~200.0MΩ | ±(1.5%+5) | |
| 500V | 0.01MΩ~500MΩ | ±(1.5%+5) | |
| 1000V | 0.1MΩ~2000MΩ | ±(1.5%+5) | |
| 2.0GΩ~9.9GΩ | ±(10%+3) | ||
| 10.0GΩ~20GΩ | ±(20%+10) | ||
| Load Current | 50V(R=50KΩ) 1mA | 0%~10% | |
| 100V(R=100KΩ) 1mA | 0%~10% | ||
| 250V(R=250KΩ) 1mA | 0%~10% | ||
| 500V(R=500KΩ) 1mA | 0%~10% | ||
| 1000V(R=1MΩ) 1mA | 0%~10% | ||
| Short Circuit Current | <2mA | ||
| Low Resistance(Ω) | 0.01Ω~20.00KΩ(About 5.0V/>200mA) | ±(1.5%+3) | |
| DC Voltage(V) | 0.0V~600.0V | ±(2%+3) | |
| AC Voltage(V) | 0.0V~600.0V | ±(2%+3) | |
| Features | ||
| Display Count | 6000 | |
| Auto Range | √ | |
| True RMS | √ | |
| Step Voltage | 10% Steps at 50%~120% of range | √ |
| DAR | 60s/15s and 60s/30s | √ |
| PI | √ | |
| Timer | √ | |
| High Voltage Indication | √ | |
| Auto Discharge | √ | |
| Anologue Bar Graph | √ | |
| Auto Power Off | √ | |
| Continuous Buzzer | √ | |
| Data Hold | √ | |
| Data Storage | 99 | |
| Comparison | √ | |
| LCD Backlight | √ | |
| Low Battery Indication | √ |
| Power | 1.5V Batteries (5#) x 6 |
| LCD Size | 78 x 59mm |
| Product Color | Red and Gray |
| Product Weight | 630g |
| Product Size | 130x225x59mm |
| Standard Accessories | Test Lead,Probe,Alligator Clip,Batteries,Carrying Bag |
